crane platform
This platform is engineered for XCMG (
) using to hanging on the hook of track crane .When the arm of crane move to a high position ,the worker in the platform can control the platform up and down smoothly not needing to move the arm of crane again,which is the main difference from the suspended manbasket.

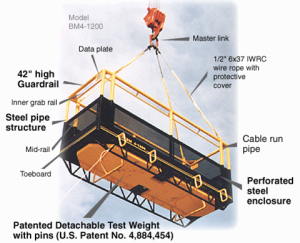

Normal manbasket hanging on the hook.This picture is from internet ,not ours.
This type of platform is composised of one working platform, one centrifugal safety lock,one hoist and a special wire winder system.

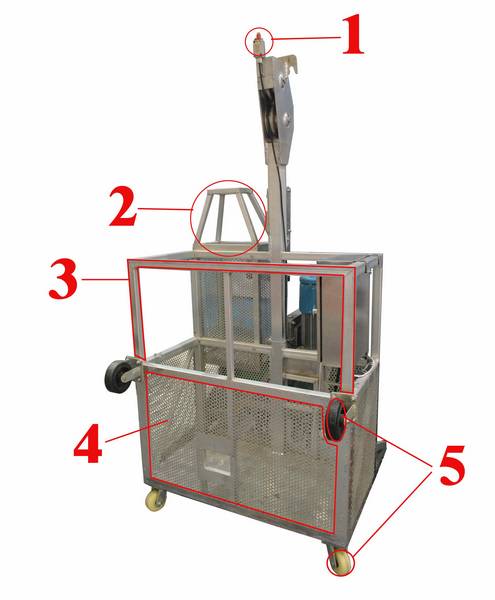

Product features(relavtive to the number on the above picture):
1. Upper limited switch used.When it arrived the toppest position ,the platform will stop automatically .
2. with a collection of cable boxes, in the course of the machine up and down, cable is stacked or released, making the cable no clutter.
3. Working platform is aluminum alloy welded, so it has the features with light weight and anticorrosive property.
4.Steel Perforated Metal Screen are covered around the platform which giving more protection.
5.At the bottom of platform it is equipped with rollers, you can easily move and equipped with black wheel leaning against the wall.
6.With specially designed Wire winder.Without an additional winder motor ,the working and safety rope can also move synchronizly to the hoist.
(
)
